Product Details

  • Working temperature:-20-+65℃
  • Working humidity:10%-90%RH
  • Panel power supply :5V
  • Screen power supply :AC220V—AC250V
  • Maximum power each Module:22W
  • Max power:330W/ M2
  • Average power:110W/ M2
  • Driving device: Constant current drive
  • Scanning mode:1Scan
  • Protection level : IP65
  • Led Lamp flatness: 1mm
  • Brightness/M2 : 8000cd
  • Service life:100000Hours

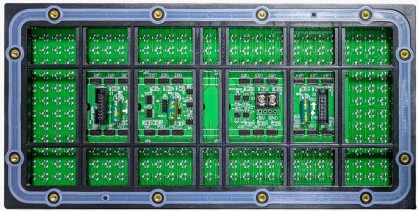

  • LED outdoor DIP light display, is energy-saving board diagram design, light beads evenly separated. Low current, low power consumption, high brightness, strong penetration (strong viewing distance), long service life, stable performance, small light decay.The PCB and led of the DIP led display can be packaged together, so as to prevent it from being damaged by water and other objects, with high brightness and long life, so this type of display is often used outdoors. Outdoor PH10 is a relatively cost-effective product.If your installation environment is more stringent, requiring 8000-10000 brightness and 8-10 years warranty installation requirements, you can choose this led display.
