Oudoor Transparent LED Display

Image 1

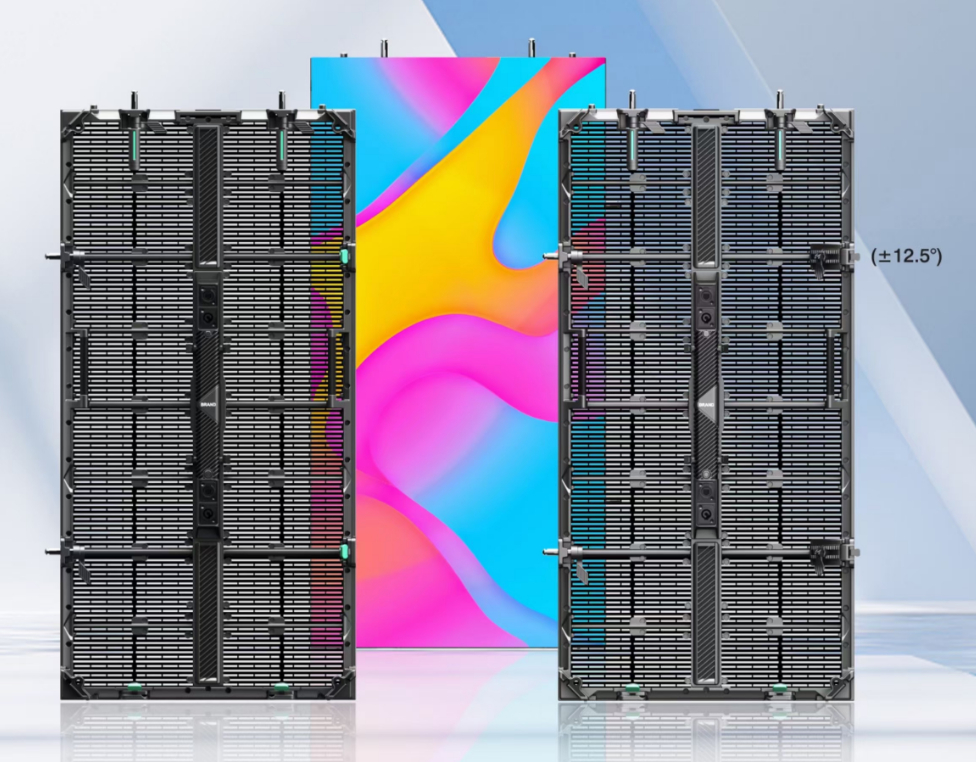

Image 2

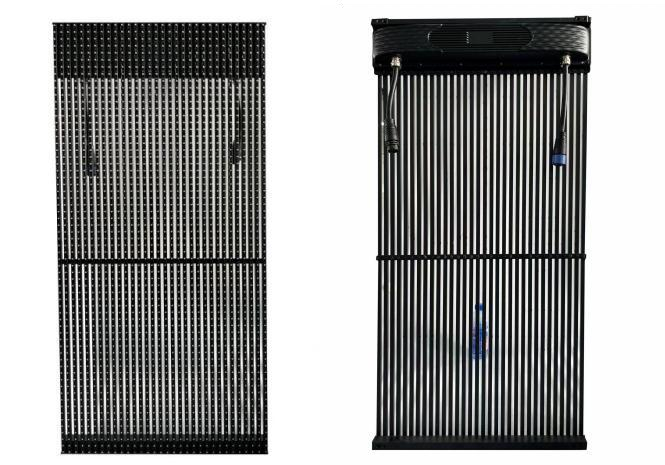

Image 2

Product Details

  • Brightness: 5500cd/㎡ or above
  • Transparency: 75% high transparency
  • High and low temperature resistance: -40°C - +60°C
    •

    1. IP67 or above protection level

    2. High brightness above 5500cd/㎡

    3. Easy installation, fast maintenance, flame retardant material and fast self-locking cabinet design, fast install, simple and fast maintenance front/back.

    4. Energy saving, environmental protection and low energy consumption

    5. 75% High Transparency

    6. Novel design, light and transparent

    7. Resistant to high and low temperatures -40℃ - +60℃, resistant to humidity and other severe weather.

    Model Number 1 2 3 4 5 6 7
    LED Configuration 1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B
    Brightness 5500cd/m²5500cd/m²7000cd/m²7000cd/m²6500cd/m²6000cd/m²3500cd/m²
    Pixel Density 32768dot/m²9216dot/m²9216dot/m²9600dot/m²8192dot/m²4096dot/m²1024dot/m²
    Transparency 75%75%75%75%75%75%75%
    Cabinet Size 1000×1000×70mm1000×1000×70mm500×1000×70mm500×1000×70mm500×1000×70mm500×1000×70mm500×1000×70mm
    Cabinet Resolution 256×128dot96×96dot48×96dot40×120dot32×128dot32×64dot16×32dot
    Module Size 500×125mm500×125mm10×1000mm10×1000mm10×1000mm10×1000mm10×1000mm
    Module Resolution 128×16dot48×12dot1×96dot1×120dot1×128dot1×64dot1×32dot
    Cabinet Weight ≤14Kg/m²≤14Kg/m²≤8Kg/m²≤8Kg/m²≤8Kg/m²≤8Kg/m²≤8Kg/m²
    IP Rating (front/back) IP65IP65IP65IP65IP65IP65IP65
    Environment OutdoorOutdoorOutdoorOutdoorOutdoorOutdoorOutdoor
    Viewing Angle (H/V) 120° / 120°120° / 120°120° / 120°120° / 120°120° / 120°120° / 120°120° / 120°
    Viewing Distance >3m>3m>3m>3m>3m>3m>3m
    Gray Scale 16bit16bit16bit16bit16bit16bit16bit
    Max. Power Consumption 800W/m²800W/m²800W/m²800W/m²800W/m²800W/m²800W/m²
    Avg. Power Consumption 400W/m²400W/m²400W/m²400W/m²400W/m²400W/m²400W/m²
    Scanning Mode 6S2S1S1S1S1S1S


    • Pixel Pitch: 1.25mm
    • Refresh Rate: 3840Hz
    • Input Power Voltage: AC100~240V, 50/60Hz
    • Control Mode: Synchronous display with control PC by DVI
    • Input Signal: Composite, S-Video, Component, VGA, DVI, HDMI, HD SDI
    • Operating Temperature: -40℃~50℃ (work), -40℃~60℃ (store)
    • Operating Humidity: 35%~85% (work), 10%~90% (store)
    • Operating Lifetime: ≥100,000 hours
    • Cabinet Material: Aluminium die casting
    • Installation Type: Hanging / Fixed
    • Packaging: Wooden box
